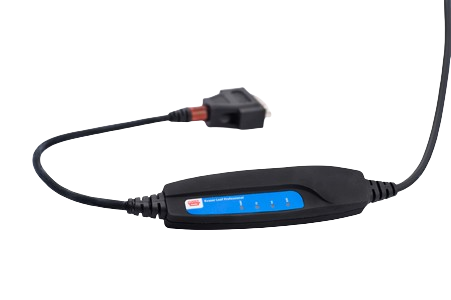

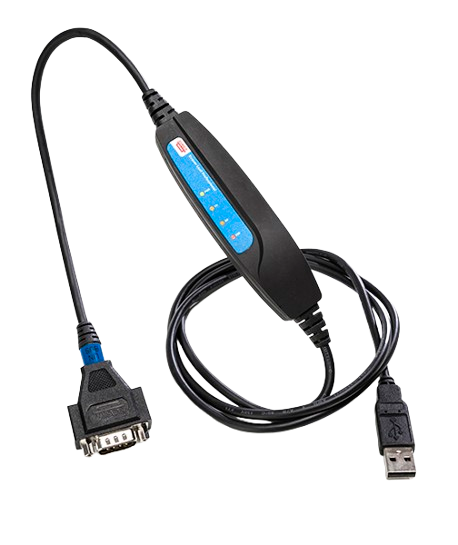

The Kvaser Leaf Professional LIN provides an easy way of connecting a PC with LIN bus devices. Compatible with both LIN 1.3 and 2.x, the Kvaser Leaf Professional LIN incorporates advanced features like error handling, silent mode for analyzing tools, and 100% compatibility with applications written for all Kvaser hardware with Kvaser’s LINlib.

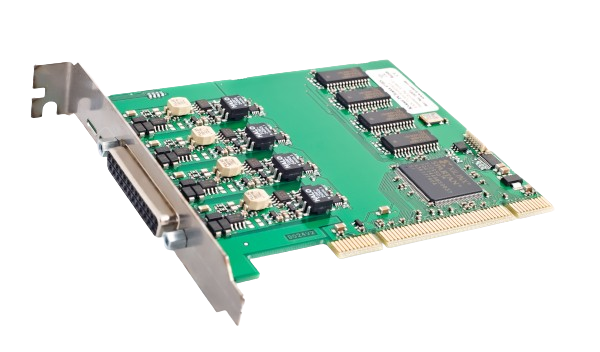

Kvaser PCIcanx 4xHS is a four channel, high speed CAN (controller area network) interface that can be used in both regular PCI and PCI-X slots. A galvanically isolated CAN bus driver protects the hardware. The onboard CAN controller is I/O mapped for quick reaction times. The PCIcanx 4xHS is ideal for multichannel data gathering applications, such as in laboratories.

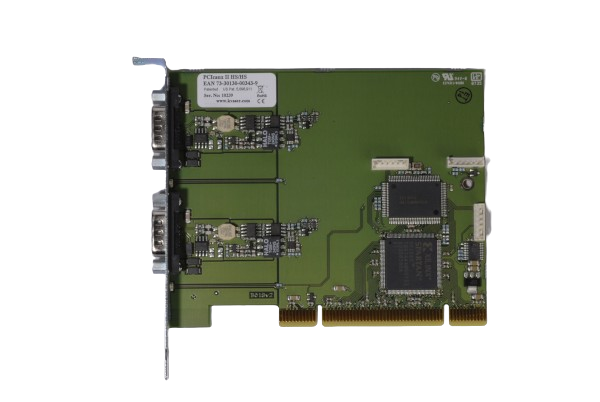

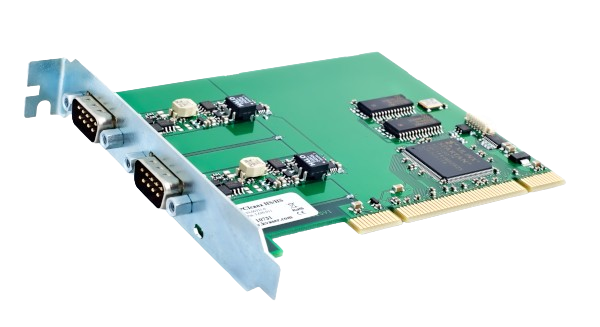

The Kvaser PCIcanx II HS/HS is a dual channel, high speed CAN (controller area network) interface board for the PCI-X and PCI bus. It features an on-board microcontroller for offloading your main CPU and galvanic isolation for protection against voltage spikes.

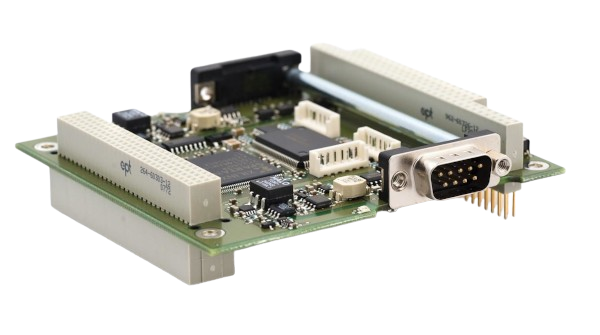

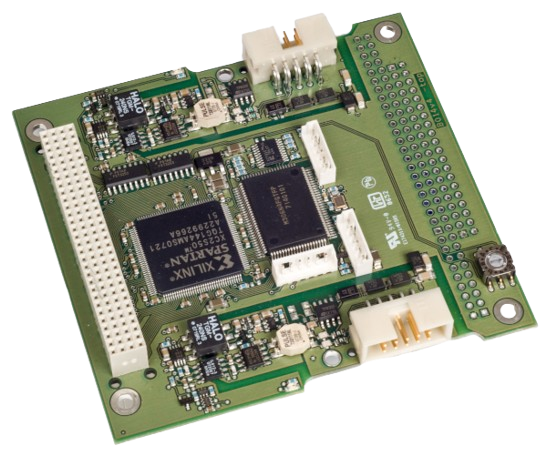

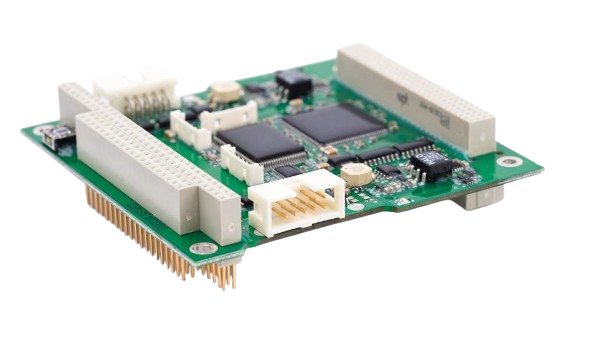

Kvaser PC104 HS/HS IDC is a two channel, PC/104 compatible CAN (controller area network) interface with IDC Header CAN connectors. It includes a high-performance, on-board microcontroller for CPU offloading, ensuring fast response times.

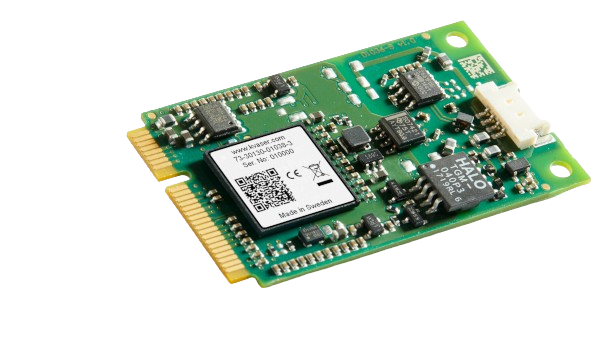

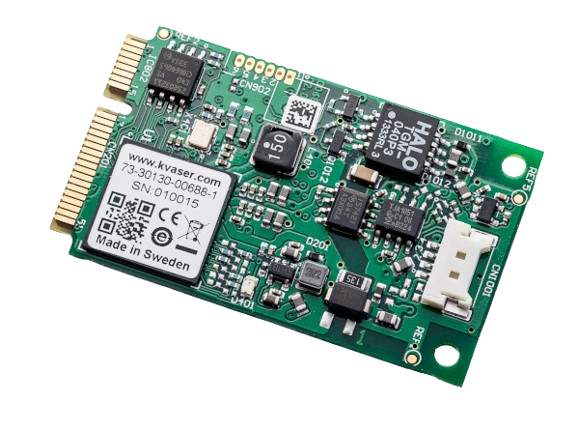

The Kvaser Mini PCI Express HS is a highly-integrated CAN (controller area network) add-on board that lets embedded system developers add CAN functionality to any standard computer board with mini PCI Express capability.
The add on board offers a single channel, high speed CAN interface with error frame detection and on-board buffer. This board has a low profile connector that complies with the mini PCI Express standard, which connects via a cable to a DSUB connector (or other type) at the computer housing. With just the CAN communication link itself exposed, total system EMC performance is protected because all the electronics remain inside the computer housing.

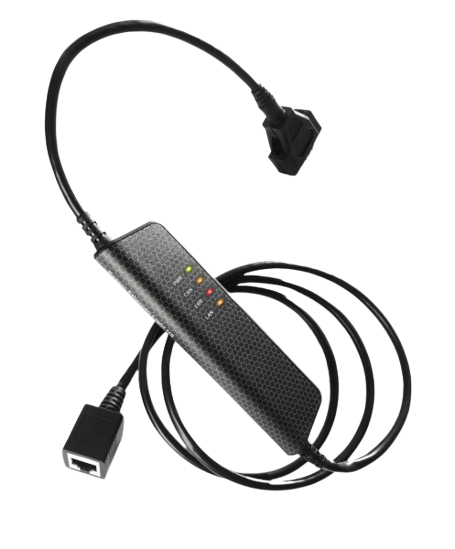

The Kvaser Ethercan Light HS is a CAN to Ethernet interface that, when linked over the Internet to an Ethernet-equipped PC, allows CAN data to be remotely accessed from anywhere in the world.

Ethercan makes it easy to implement the Internet of Things (IoT) concept by enabling data from any CAN product or system to be sent over a corporate network or the Cloud, using the standard Kvaser API. The Kvaser Ethercan device can be configured with a static IP and comes with an Ethercan Factory Reset Device to reset the configuration to factory default DHCP settings at the push of a button.

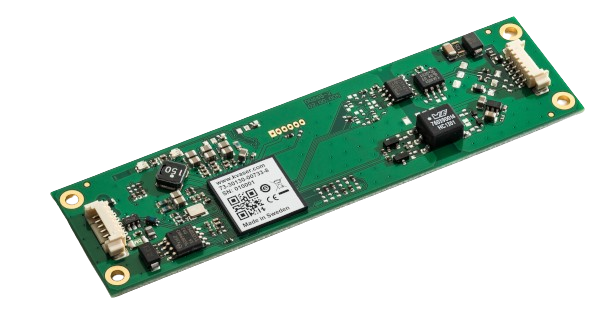

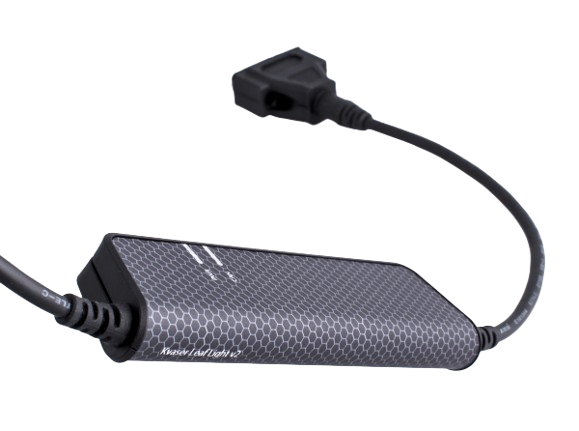

The Leaf Light v2 CB is the bare circuit board version of Kvaser’s popular Leaf Light v2 interface – a single-channel, high speed, USB-to-CANbus interface. Having made its name as the work-horse of USB to CAN interfaces, Kvaser’s Leaf Light product series provides reliable, low cost connection to the PC.

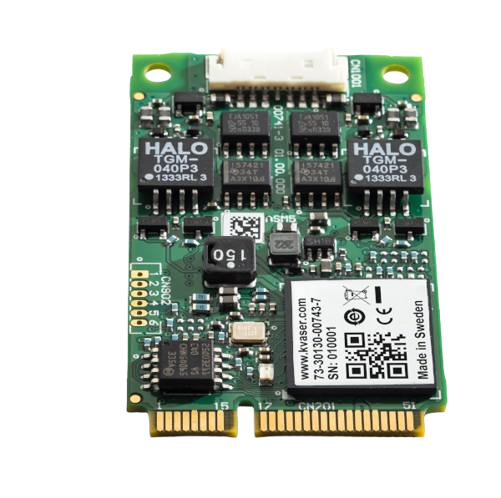

Measuring 30 x 51mm, the Kvaser Mini PCI Express 2xHS is a highly integrated CAN (controller area network) add-on board that adds two high speed CAN channels to any standard computer board with mini PCI Express capability. Offering silent mode, error frame detection and an on-board buffer, the small form factor board fits any embedded data acquisition systems, but is particularly suitable for fleet management to monitor key parameters such as fuel economy, engine speed, braking and accelerator pressure, and gearshift patterns.

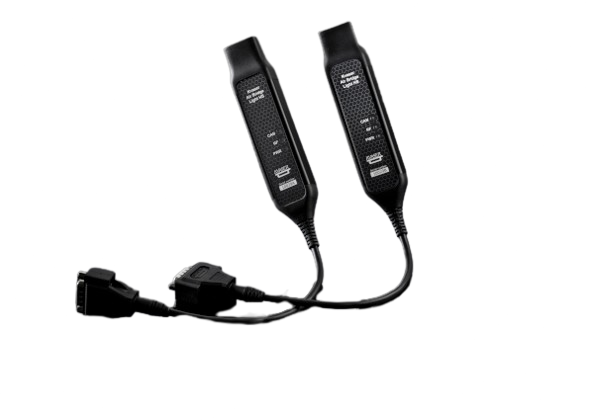

Kvaser Air Bridge Light HS is a configuration-free wireless CAN bridge that achieves predictable latency, without sacrificing stability or range. Comprising a preconfigured pair of plug-and-play units to rapidly exchange raw CAN data, the Kvaser Air Bridge Light HS is designed for environments or situations that make wired connection unsuitable or challenging e.g. between two moving parts that are connected by CAN.

There are two versions: Kvaser Air Bridge Light HS (00808-3) is approved for the European Union, while Kvaser Air Bridge Light HS (FCC) (01008-6) complies with US certification. Both share the same functionality but have different radio transmission schemes due to regulatory differences.

Kvaser Memorator Pro 2xHS v2 is a professional-level, dual channel CAN bus interface and standalone data logger offering advanced features such as message filtering, triggers, error detection and generation, silent mode, an expandable SD card slot up to 64G, and galvanic isolation.

Connected to a PC with USB2.0, the Kvaser Memorator Pro 2xHS v2 operates as a powerful real time CAN to USB interface, whilst in data logger mode, the compact design of this device makes for the perfect flight recorder.

Configurable using Kvaser’s Memorator Config Tool, this device is capable of running user-developed scripts, written in the Kvaser t programming language. Guidance in creating t programs is provided. The Kvaser Memorator Pro 2xHS v2 is CAN FD compliant.

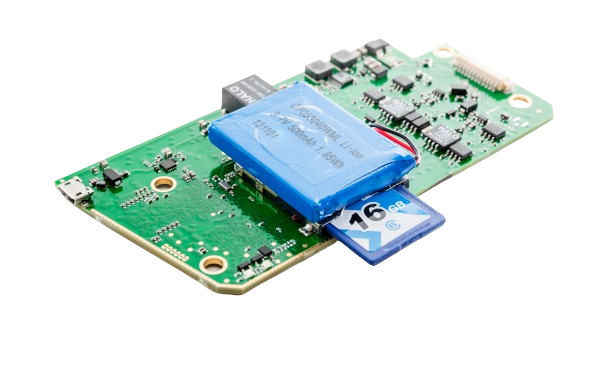

Kvaser Memorator Pro 5xHS CB is a five channel, high performance, CAN (controller area network) bus interface and standalone datalogger that allows users to monitor and collect data from up to five CAN channels using just one device. It is supplied ‘bare board’ i.e. without a housing, and can thus be built into any system. The Memorator Pro 5xHS CB supports CAN FD.

Configurable using Kvaser’s Memorator Config Tool, Memorator Pro 5xHS CB is capable of running user-developed scripts, written in the Kvaser t programming language. Guidance in creating t programs is supplied. The device is also supported in CANlib, Kvaser’s universal software development kit.

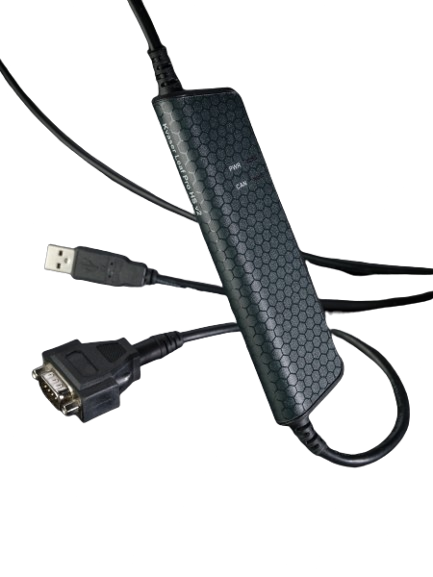

Kvaser Leaf Pro HS v2 is an evolution of the Leaf family that bring programmability to user’s fingertips, as well as CAN with Flexible Data-Rate (CAN FD). Kvaser’s Pro versions boast a high transmit capability that meets the needs of CAN FD frames. It also supports customisation using Kvaser’s t programming language. For example, users can run a t program to speed up file transfer protocols or to emulate ECUs and other devices by generating traffic and handling protocols. This model has a standard 9-pin DSUB, bus is also available with a 16-pin OBDII connector. Please see Kvaser Leaf Pro HS v2 OBDII for details.

Kvaser PCIEcan HS v2 is a highly integrated, high speed controller area network (CAN) card that adds a single high speed (ISO 11898-2) CAN channel to any standard computer board with PCI Express capability. At 86 x 69 mm, this has a smaller form factor and lower profile than the Kvaser PCIEcan HS.

Offering silent mode, error frame detection/generation and an on-board buffer, this add-on board fits many embedded data acquisition systems and is CAN FD compliant.

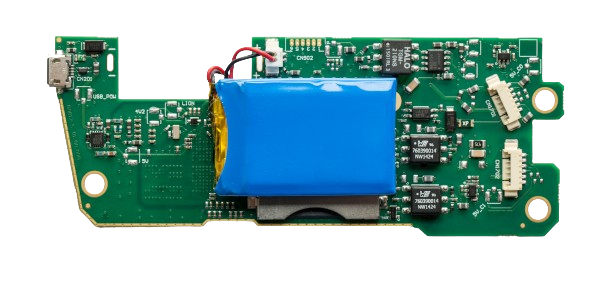

Kvaser Memorator Pro 2xHS v2 CB is a professional-level, dual channel CAN bus interface and standalone data logger offering advanced features such as message filtering, triggers, error detection and generation, silent mode, an expandable SD card slot up to 64G, and galvanic isolation.

Configurable using Kvaser’s Memorator Config Tool, this device is capable of running user-developed scripts, written in the Kvaser t programming language. Guidance in creating t programs is provided. The Kvaser Memorator Pro 2xHS v2 CB is CAN FD compliant.

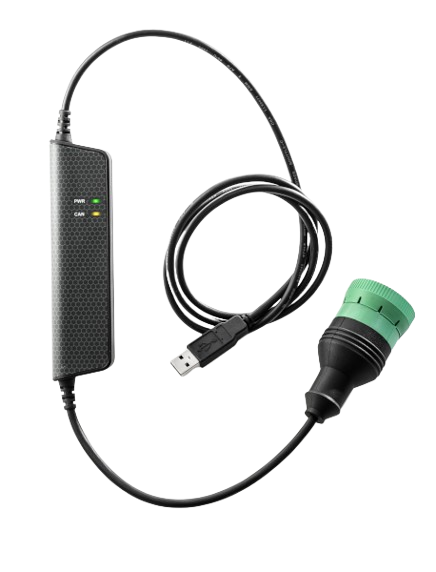

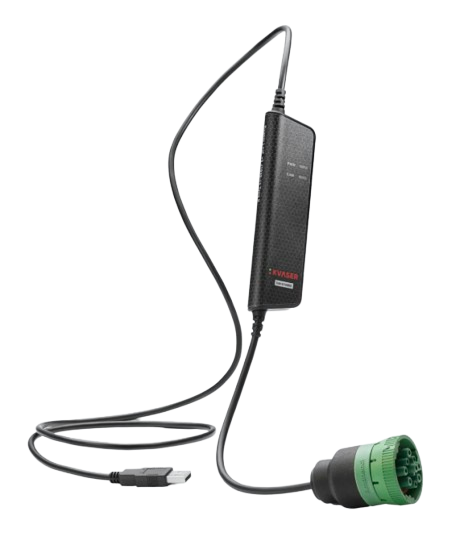

The Leaf Light HS v2 J1939-13 Type II provides a simple way of connecting a PC with the on-board computer of any J1939 compliant vehicle or industrial system. Get diagnostic data by means of its USB 2.0 connector and a 9-pin J1939-13 (Type II) compliant CAN connector, which is colour-coded in green and supports either 250 Kbps or 500 Kbps vehicle networks.

Kvaser USBcan R v2 2xHS is a lightweight, yet highly durable, two channel CAN bus interface. The IP65-rated housing is made of aluminum alloy, sealed with a heavy-duty polyurethane coating that assures reliable protection against water and dust ingress, and is vibration, shock and drop proof. With a standard USB2.0 connection and two high-speed CAN channels in two separate 9-pin D-SUB CAN connectors, the Kvaser USBcan R v2 2xHS handles transmission and reception of standard and extended CAN messages, with a time stamp precision of 100 microseconds. Features include error frame detection.

The Kvaser Ethercan HS is a powerful, real-time Ethernet to CAN interface that, when linked over the Internet to an Ethernet-equipped PC, allows CAN data to be remotely accessed from anywhere in the world. Built-in Power over Ethernet (PoE) eliminates the need for a separate power cable when you can’t power the device from the CAN bus.

Kvaser’s Ethercan product range makes it easy to implement the Internet of Things (IoT) concept by enabling data from any CAN product or system to be sent over a corporate network or WAN, using the standard Kvaser CANlib API. Users of the Kvaser Ethercan HS can also choose to connect to the device using the built-in REST API for web-enabled devices, such as smartphones.
As a programmable interface, the Kvaser Ethercan HS is suited to advanced applications, such as ECU reflashing. For example, a t program could be created to process CAN messages locally in the device, removing the latency of WiFi and/or Ethernet.

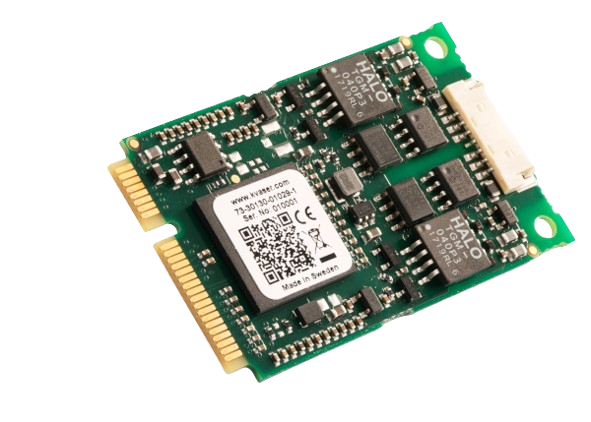

The Kvaser Mini PCI Express 2xHS v2 is a small (30 x 51mm), yet advanced, real time CAN interface that adds two high speed CAN or CAN FD channels to any standard computer with mini PCI Express capability. PC communication is over the PCI Express system bus, making for extremely low latency with a time stamp accuracy of 1 µs.

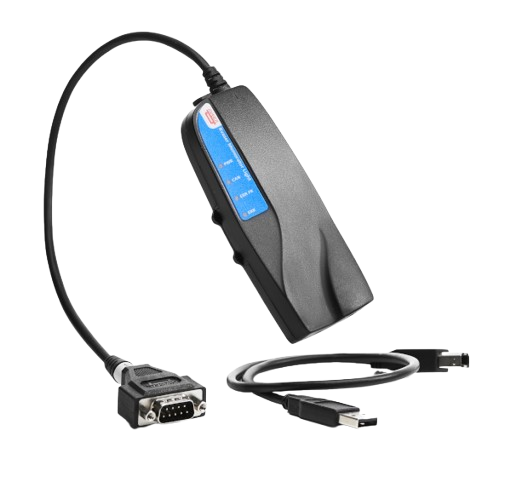

Designed for troubleshooting any CAN-based (controller area network) system, the Kvaser Memorator Light HS v2 is an easy-to-use tool for logging serial data, with no software setup required. With an autobaud function that determines CAN bus bit rate, the Kvaser Memorator Light can be attached to any high-speed CAN bus without configuration. All CAN bus traffic is logged in a circular buffer, overwriting the oldest data when the buffer becomes full. A separate circular buffer keeps track of error frame conditions and the message traffic that occurs near the conditions.

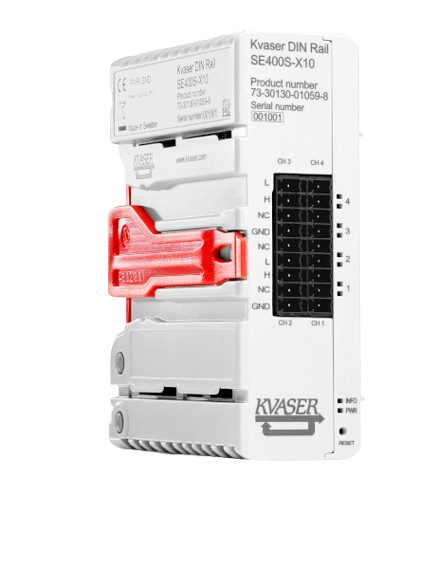

The Kvaser DIN Rail SE400S-X10 is a multichannel, programmable Ethernet to CAN/CAN FD interface for DIN Rail mounting. This device has four CAN/CAN FD channels and supports up to four optional Kvaser DIN Rail SE400S-X10 I/O add-on modules of which there are three different types; analog, digital and relay. Ideal for automotive test cell or end-of-line production test applications, the SE400S-X10 can download and run programs created in the Kvaser t programming language, such as diagnostics routines to test automotive body control modules.

Kvaser DIN Rail S030-X11 Relay is an optional add-on module to the Kvaser DIN Rail SE400S-X10 base module with eight N.O. (Normally Open) relays and eight digital inputs that can be used separately. This IP20-rated module is thermal, reverse-polarity protected and surge power supply protected. A power LED displays the state of the module, whilst there are separate LEDs for each of the digital inputs.
