RCM Module (RCM) (w/ separate DC Voltage Booster)
$8,025.00 Excludes tax and shipping

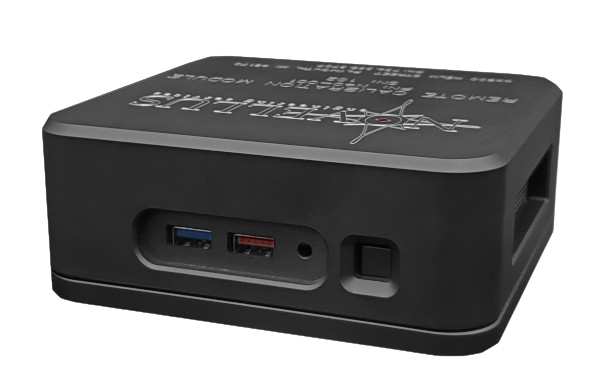

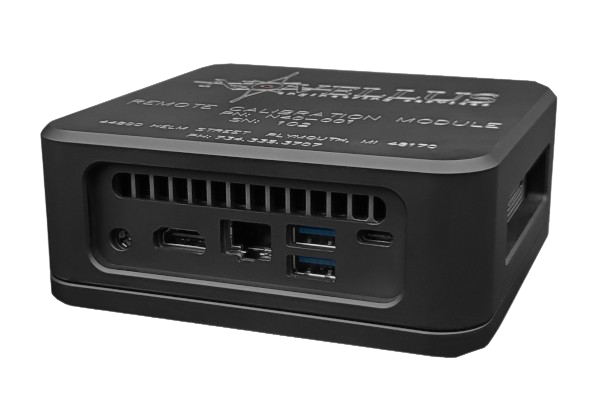

The Remote Calibration Module (RCM) is a secure remote-access platform designed to provide connectivity to a wide range of calibration and development tools. Engineered for remote testing and calibration activities, the RCM enables high-speed data collection, storage, transfer, and remote access to support both on-site and off-site development programs.
The system supports a variety of connectivity options and can be utilized in numerous applications, including vehicle testing, dynamometer operations, and powertrain development. The RCM also enables the remote upload and download of calibration files, test data, and diagnostic information, improving efficiency for distributed engineering teams.
Available customization options include memory capacity, storage configuration, communication interfaces, and GPS tracking capabilities.
Power Requirements
For optimal performance, the RCM is recommended to operate at 19 VDC. Each unit is supplied with a Novellus DC Voltage Booster, which converts a standard 12 VDC input to 19 VDC to power the module.
Note: RCM units can be ordered without the DC Voltage Booster upon request. Please contact Novellus Engineering for configuration options.
Additional information
| Weight | 2.74 lbs |
|---|---|
| Dimensions | 4.96 × 4.96 × 1.99 in |
