Custom & Build-to-Order Products

Showing all 8 results

Canalog

CANALOG

SKU:Part# N20-004 Built to Order
Price:
$4,500.00 Excludes tax and shipping
Read more

CANALOG Interface Module The CANALOG module connects to any CAN or CAN FD network and converts selected CAN channels into analog or PWM outputs based on the configured input parameters. Both output types support linear scaling using a Y = MX + B slope‑and‑offset formula, allowing precise calibration of the resulting analog or PWM signals.

CANary BoB

SKU:Part# N20-001 Built to Order
Price:
$803.00 Excludes tax and shipping
Read more
CANary FD BoB

CANary FD BoB

SKU:Part# N20-006 Built to Order
Price:
$1,070.00 Excludes tax and shipping
Read more

The CANary FD Breakout Box provides an interface to the ATI CANary system, routing all four CAN channels and power to ATI analog hardware through standard LEMO instrumentation connectors. Each of the four CAN channels is also accessible via dedicated DB9 connectors, enabling straightforward integration, monitoring, or expansion within CAN and CAN FD networks

CAN SINGLE MODIFIER

CAN Signal Modifier

SKU:Part# N20-008 Built to Order
Price:
$3,350.00 Excludes tax and shipping
Order Here

CAN Signal Modifier The CAN Signal Modifier intercepts CAN and CAN FD messages, applies a configurable offset and scalar, and retransmits the modified data to the original receiving module. All parameters are adjustable through the included USB‑compatible configuration software, enabling precise control of message manipulation.

Primary applications include calibration development, system verification, and fault simulation for OBDII monitor evaluation in alignment with current EPA regulatory requirements.

Ethanol Analyzer

SKU:Part# N20-002 Built to Order
Price:
$3,343.75 Excludes tax and shipping
Order Here

The Ethanol Analyzer is designed for inline installation and measures both ethanol concentration and fuel temperature in real time. Measurement data is transmitted over high‑speed CAN and CAN FD networks, enabling seamless integration with calibration, monitoring, and powertrain development systems.

TCAN

SKU:Part# N20-005 Built to Order
Price:
$3,612.00 Excludes tax and shipping
Order Here

The TCAN module converts measurements from up to four thermocouple (TC) inputs into CAN messages for transmission over a CAN network. In addition to thermocouple data acquisition, the module can modify incoming CAN signals by applying configurable offsets and scaling factors before transmitting the updated data to the CAN output.

This functionality supports accurate sensor integration, signal conditioning, and calibration development within CAN-based systems.

Tri-CAN v1

TriCAN v1

SKU:Part# N20-003 Built to Order
Price:
$2,408.00 Excludes tax and shipping
Read more

The TriCAN is a versatile CAN network monitoring device designed to support both CAN 2.0B (medium- and high-speed CAN networks) and CAN FD communications. The device enables reliable network monitoring, analysis, and integration across a wide range of automotive and industrial CAN applications.

For added flexibility, the TriCAN features integrated CAN bus termination, which can be enabled or disabled as required to accommodate specific network configurations and testing environments.

TriCAN v2

SKU:Part# N20-007 Built to Order
Price:
$3,010.00 Excludes tax and shipping
Read more

The TriCAN V2 Display is a handheld CAN monitoring device designed to collect and display vehicle network data directly from the OBDII port. Captured data can be viewed on the integrated TriCAN V2 Display or streamed wirelessly to a compatible user device via Bluetooth® connectivity.

The device supports both CAN 2.0B (medium- and high-speed CAN networks) and CAN FD protocols, providing compatibility with a wide range of vehicle and development platforms. An integrated CAN bus termination feature can be enabled or disabled as needed to meet specific network requirements and testing configurations.

Showing all 8 results

Kvaser U100P

SKU:73-30130-01174-8
Price:

Select options This product has multiple variants. The options may be chosen on the product page

The Kvaser U100P is the Precision version of Kvaser’s U100 range of CAN to USB interfaces. The Kvaser U100P delivers advanced features for engineers working in system development and difficult troubleshooting situations. Get more precise timestamping, synced time measurements across multiple devices, and listen to the CANbus in silent mode.

​​​​​​​​​​​​​​The Kvaser U100P is also available with J1939, M12 or OBD-II CAN connectors.

Product Data and Specs

Kvaser U100P A4 (canlandbucket.s3-eu-west-1.amazonaws.com)

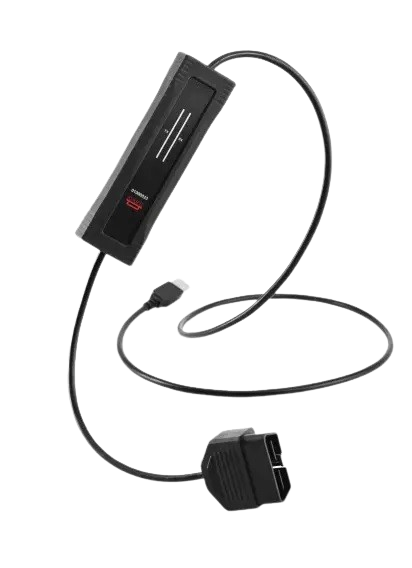

Kvaser U100-X3 V2

SKU:73-30130-01268-4
Price:
$523.00 Excludes tax and shipping
Add to cart

The Kvaser U100-X3 is a robust, galvanically-reinforced single-channel CAN/CAN FD to USB interface with a 16-pin OBDII plug.

Signal and power isolated, the Kvaser U100 offers enhanced electrical protection, a vibration, shock and drop-proof housing and high-quality cabling that meets the needs of CAN system developers through to service technicians.

With an intelligent LED that displays bus loads and error frames, an industry-leading IP67 rating and an innovative connector system, the U100 has numerous stand-out features. Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet, this suits rugged and higher voltage applications in marine, industrial, construction, heavy-duty, agriculture and automotive, including electric vehicle markets.

The Kvaser U100 is also available with 9-pin D-SUB, J1939-13 Type II or M12 CAN connectors.



Product Data and Specs

Kvaser U100-X3 A4 (canlandbucket.s3-eu-west-1.amazonaws.com)

Kvaser U100-X3

Price:
$523.00 Excludes tax and shipping
Add to cart

The Kvaser U100-X3 is a robust, galvanically-reinforced single-channel CAN/CAN FD to USB interface with a 16-pin OBDII plug.

Signal and power isolated, the Kvaser U100 offers enhanced electrical protection, a vibration, shock and drop-proof housing and high-quality cabling that meets the needs of CAN system developers through to service technicians.

With an intelligent LED that displays bus loads and error frames, an industry-leading IP67 rating and an innovative connector system, the U100 has numerous stand-out features. Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet, this suits rugged and higher voltage applications in marine, industrial, construction, heavy-duty, agriculture and automotive, including electric vehicle markets.

The Kvaser U100 is also available with 9-pin D-SUB, J1939-13 Type II or M12 CAN connectors.

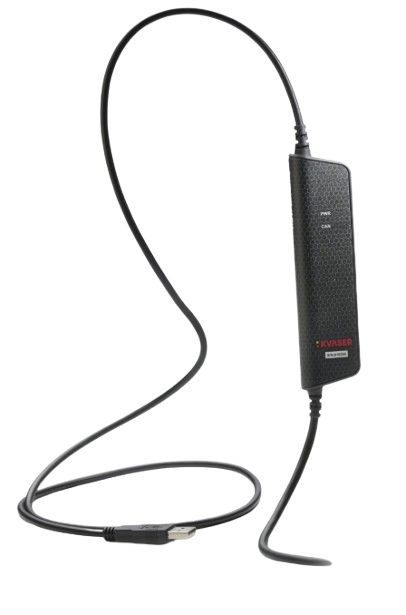

Kvaser Leaf v3

SKU:EAN: 73-30130-01424-4
Price:
$370.00 Excludes tax and shipping
Buy product

The Kvaser Leaf v3 represents one of the easiest and lowest-cost methods of connecting a computer to a CAN bus network in order to monitor and transmit CAN and CAN FD data. With its standard USB 2.0 connector and 9-pin D-SUB connector, the Leaf v3’s sleek, ergonomically designed housing is both robust enough for everyday use and small and flexible enough to be used in space-constrained applications.

The Kvaser Leaf v3 can handle up to 20 000 messages per second, each time-stamped with a 50-microsecond accuracy. No external power is needed and galvanic isolation is standard.

Product Data & Specs

Kvaser Leaf V3

SKU:EAN: 73-30130-01428-2
Price:
$370.00 Excludes tax and shipping
Buy product

The Kvaser Leaf v3 M12 is a versatile and reliable interface for connecting a computer to a CAN bus network in automation, industrial, and marine environments.

It features a 5-pin A-coded M12 connector, widely used for CAN bus connections in maritime and industrial automation applications.

Capable of handling up to 20,000 messages per second, each timestamped with 50-microsecond accuracy, the Leaf v3 M12 requires no external power and features standard galvanic isolation.

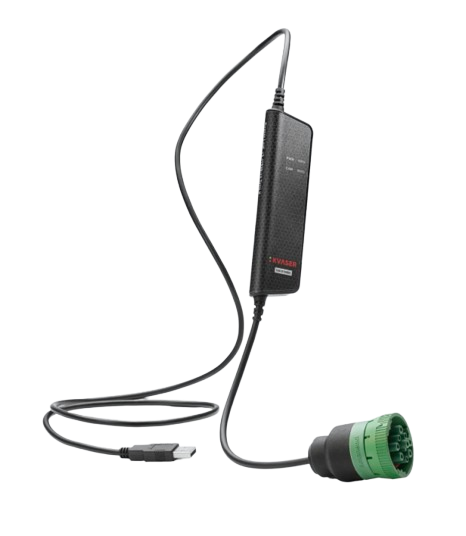

Kvaser Leaf v3 J1939-13 Type II

SKU:EAN: 73-30130-01426-8
Price:
$370.00 Excludes tax and shipping
Buy product

The Kvaser Leaf v3 J1939-13 is a reliable tool for connecting a computer to a CAN bus network, enabling the monitoring and transmission of CAN and CAN FD data. It features a USB Type-A connector and a 9-pin J1939-13 Type II connector; the latter is commonly used for diagnostics and communication in heavy-duty vehicles.

The Type II connector, colour-coded in green and supporting either 250 Kbps or 500 Kbps, is backward-compatible with the older Type I connector, colour-coded in black and limited to 250 Kbps.

Offering excellent value, the Kvaser Leaf v3 J1939-13 ensures reliable communication for vehicle networks where the J1939 protocol is critical.

Kvaser Leaf v3 J1939-13 Type II

SKU:EAN: 73-30130-01426-2
Price:
$370.00 Excludes tax and shipping
Buy product

The Kvaser Leaf v3 J1939-13 is a reliable tool for connecting a computer to a CAN bus network, enabling the monitoring and transmission of CAN and CAN FD data. It features a USB Type-A connector and a 9-pin J1939-13 Type II connector; the latter is commonly used for diagnostics and communication in heavy-duty vehicles.

The Type II connector, colour-coded in green and supporting either 250 Kbps or 500 Kbps, is backward-compatible with the older Type I connector, colour-coded in black and limited to 250 Kbps.

Offering excellent value, the Kvaser Leaf v3 J1939-13 ensures reliable communication for vehicle networks where the J1939 protocol is critical.

Product Data & Specs

Kvaser Leaf v3 CB

SKU:EAN: 73-30130-01532-6
Price:
$358.00 Excludes tax and shipping
Add to cart

The Kvaser Leaf v3 CB is the circuit board version of Kvaser’s popular single-channel, high speed, USB-to-CAN bus interface, the Kvaser Leaf v3. This board boasts a timestamp precision of 50 µs and support for a wide CAN bit rate range from 20 kbit/s to 1 Mbit/s. The message rate has been boosted significantly to 20,000 msg/s.

While remaining the industry standard for reliable and low-cost CAN interfaces, the Kvaser Leaf v3 CB introduces an important feature beyond support for CAN FD. Silent mode allows this interface to be used to listen to a CAN bus without transmitting. Find out more about silent mode here.

For customers wishing to use the Kvaser Leaf v3 CB as a direct replacement for the Kvaser Leaf Light HS v2 CB (00733-8), the Kvaser Leaf v3 CB retains the same dimensions and the same mounting hole locations and LED positions. New soldering options cater to requirements for alternative connectors or self-build PC applications.

Product Data & Specs

Kvaser Leaf v3 M12

SKU:EAN: 73-30130-01428
Price:
$370.00 Excludes tax and shipping
Buy product

The Kvaser Leaf v3 M12 is a versatile and reliable interface for connecting a computer to a CAN bus network in automation, industrial, and marine environments.

It features a 5-pin A-coded M12 connector, widely used for CAN bus connections in maritime and industrial automation applications.

Capable of handling up to 20,000 messages per second, each timestamped with 50-microsecond accuracy, the Leaf v3 M12 requires no external power and features standard galvanic isolation.

Product Data & Specs

Kvaser Leaf v3 OBD-II

SKU:EAN: 73-30130-01430-5
Price:
$370.00 Excludes tax and shipping
Add to cart

The Kvaser Leaf v3 OBD-II provides seamless access to vehicle diagnostics from your PC. It features a USB Type-A connector and a 16-pin OBD-II connector, offering direct access to data from the Engine Control Unit (ECU). The ECU stores diagnostic trouble codes (DTCs), enabling your software to retrieve engine performance data, fuel efficiency metrics, emissions information, and system error codes via the OBD-II interface.

Capable of processing up to 20,000 messages per second, each timestamped with 50-microsecond accuracy, the Leaf v3 OBD-II is the ideal Vehicle Communication Interface (VCI), suitable for development purposes, production, after-sales and repair. It includes standard galvanic isolation for reliable and safe operation.

Product Data & Specs
